Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure

Henan LinkZone Fire Technology Co.,Ltd
Contact Now

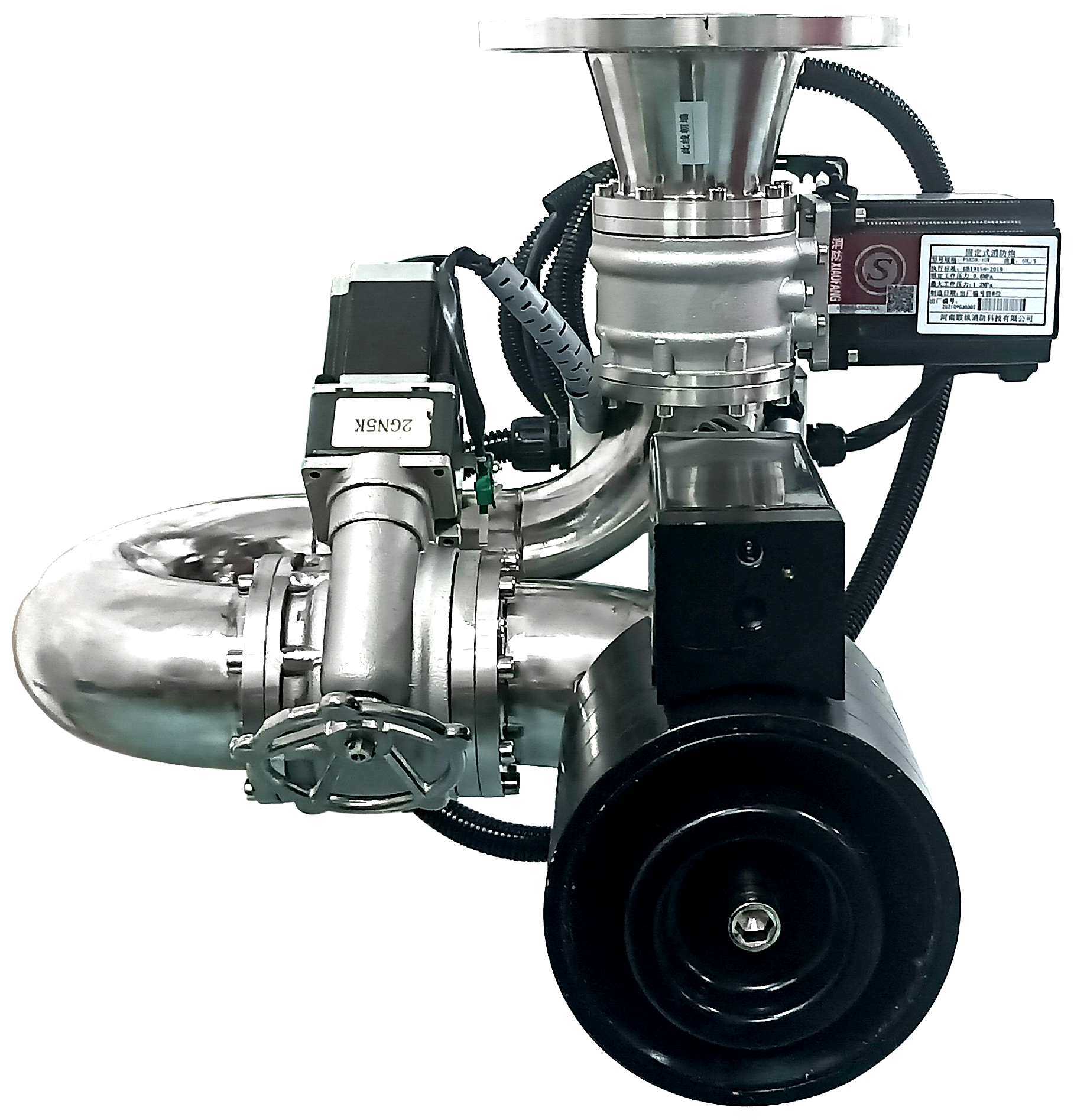

Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure

Place of Origin : Henan, China

Brand Name : LinkZone

Model Number : ZDMS 0.8/20S-LZ II

Packaging Details : International Standard Export Packing

Supply Ability : 200000 Set/Sets per Year

Price : $2,300.00 - $2,500.00/sets

Rated working pressure : 0.8MPa

Rated flow : 20L/s

Maximum protection radius : 50m

Jet radius : 55m

Monitoring radius : 60m

Positioning time : ≤30s

Installation height : 8~15m

Horizontal swing angle : 360°

Keyword : Fire water cannon

Port : Shanghai,Shenzhen,Qingdao,Tianjin,Dalian

Contact Now

Advanced automatic fire fighting robot for keeping people and property safe

Product Overview

Robotic Water Cannons & Remote Control Fire Monitors
The world’s most advanced, fully automatic fire detection & suppression system for instant, autonomous fire protection Our intelligent fire monitor adopts infrared thermal imaging principle and air-to-air missile tracking technology,It has the functions of real-time measurement and calculation of the real-time temperature of the fire, automatic tracking of the fire, automatic spraying to extinguish, and automatic water shut off after the fire is extinguished.
FEATURES AT A GLANCE
ITEM#:ZDMS 0.8/20S-LZ II
DIMENSION:580×360mm
NET WEIGHT:10KG
MODEL: ZDMS0.8/20S-LZ II
SENSOR:IR SENSOR
VOLTAGE:220V
COMMUNICATION METHOD:CAN bus
KEYWORD:INTELLIGENT FIRE WATER CANNON
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Front elevation
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Left elevation
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Standard &Requirements
Inspection results
1
Rated working pressure (MPa)
≤0.8
0.6
/
2
Water flow rate (L / s)
20×(1±8%)
20.1
/
3
Maximum protection radius(m)
≥50
50
/
4
Jet radius (m)
≥55
55
/
5
Monitoring radius(m)
≥80
80
/
6
Positioning time(s)
≤60
59
60
7
Installation height (m)
8~15
8
15
8
Horizontal swing angle(°)
≥180
360
9
Vertical rotate angle(°)
-90~+30
-90~+30
10
working temperature
4~55℃ ≤95%RH
4~55℃ ≤95%RH
PRODUCT CONFIGURATION
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Control host
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Electric control box
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Field operation panel
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
SALES AND SERVICE NETWORK
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Successful Project
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Project in Malaysia
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Project in Azerbaijan
Advanced Automatic Fire Fighting Robot Water Cannon 0.8MPa High Pressure
Project in Singapore
FAQ
Q1: Are you a manufacturer?
A1: Yes. We are a professional manufacture of intelligent fire-fighting equipment, like Full-auto Fire Monitor|Intelligent Fire Water Cannon.
Q2: What certificates do you have?
A2: We only have CCC and ISO at present. FM or UL will be got within next year.
Q3: What are the advantages of your Intelligent Fire Monitor|Fire Water Cannon?
A3: Our Intelligent Fire Monitor|Fire Water Cannon integrates the following functions: 1. Remote Video Surveillance. 2. Fire Alarm. 3. Intelligent Fire Extinguishing.
